Description

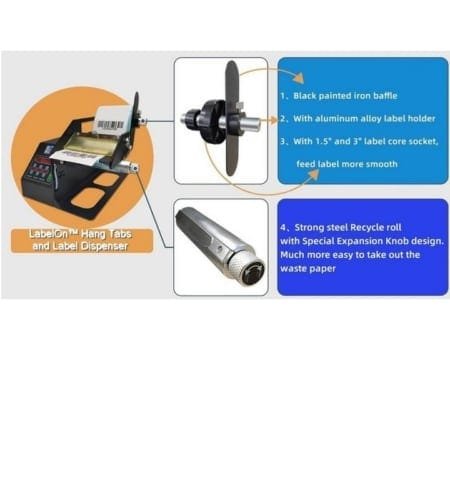

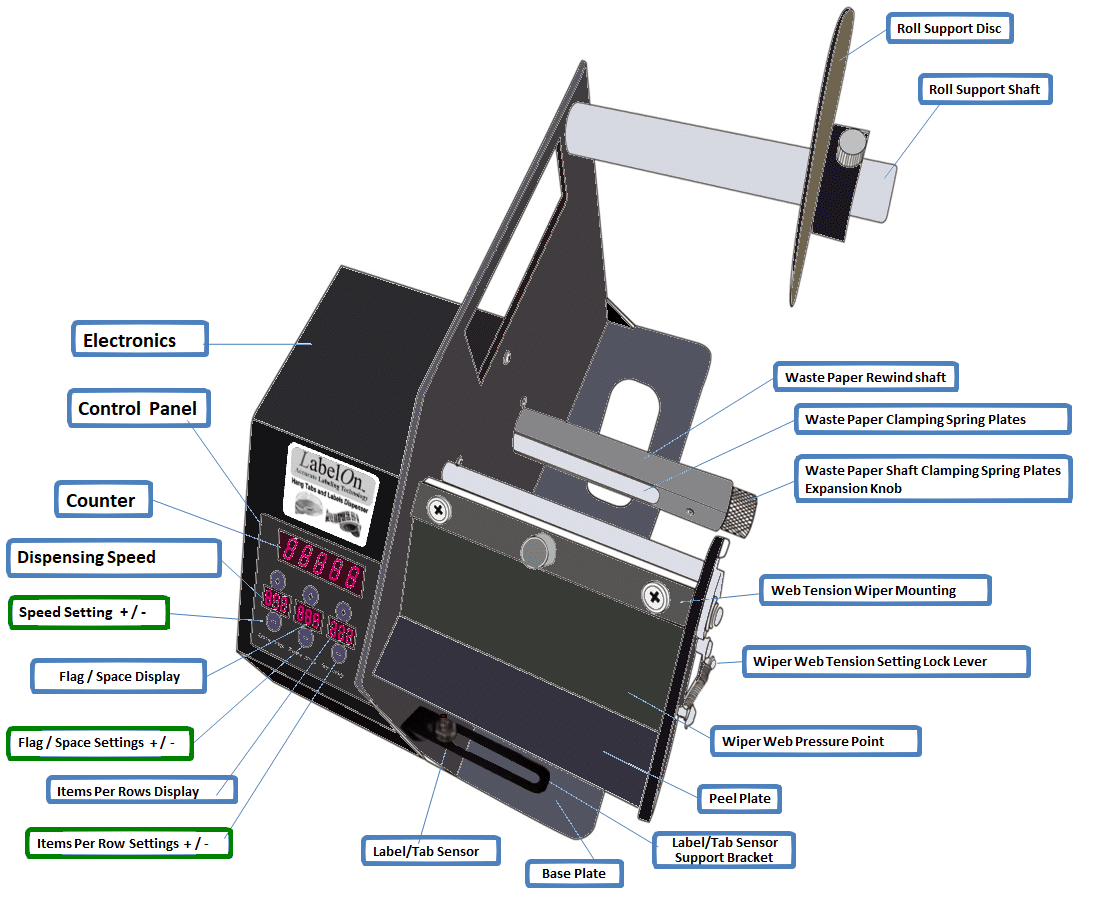

A LabelOn™ Hang Tabs and Label Dispenser is a good first step to volume Hang Tabs and Volume labeling.
In this video, our HTLAB is shown Dispensing Heavy Duty Hang Tabs from Roll Form.
Dispensing Speed 1″(2.5cm)-10″ (25cm)/second
Label or Hang Tabs Web Width Width 1″(25mm) -6″(150mm)
Label or Hang Tab Length Height 1/3″(8mm) -8″(200mm)
Label or Hang Tab Roll Capacity up to a MAX O.D. 260mm
Sensor Type Optical Fiber
(Suitable for Transparent & Non-Transparent Hang Tabs and Labels)
Automatic Counter which you can set to index by more than 1
To explain, sometimes for small Hang Tabs or Labels you can get a roll made up with more than one across the web; say “n” across the web. The Optical Sensor can be set up to stop the feed at the first item of “n” across the web.
The operator peels off each item from the opposite side of the web to the sensor until they get to the item blocking the sensor.
When they remove the item blocking the sensor the next row of items indexes until the sensor is blocked again.
To keep track of the number of items the counter can be set to index by “n”
Power
Universal Power Adapter AC Input:110 to 220V,50/60hz，AC Output:24V，1.5A
Dimension 11.2″ (285mm) * 12.1″ (308mm) * 9.7″ (245mm)
Environment
32F (0C) – 113F (45C), Relative Humidity:25%-85%
